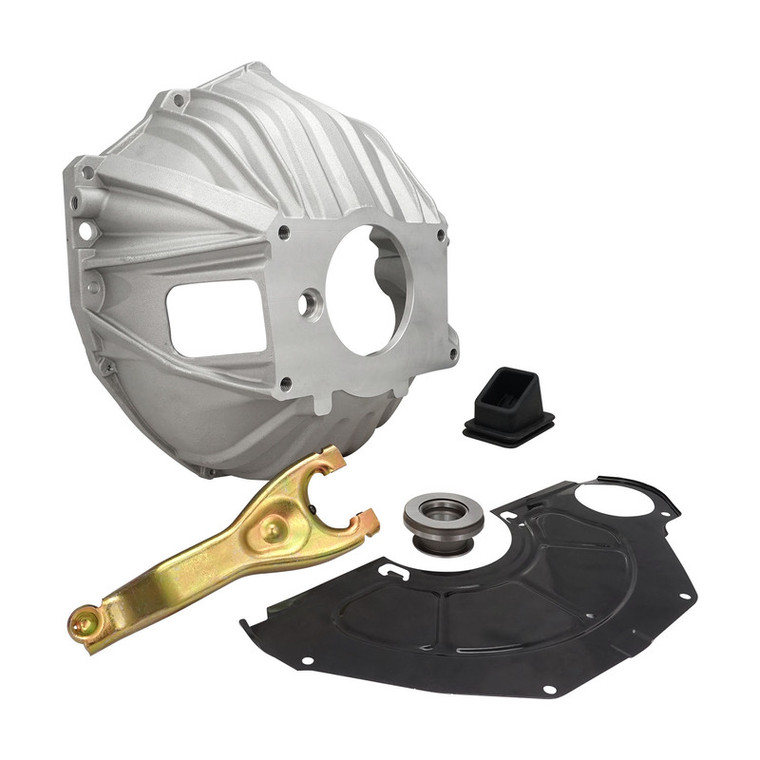

RTS OE Transmission Bellhousing Kit, Manual, OE Style, Aluminium, SB, BB, Chev Engines, Tremec TKO Trans, Kit

RTS OE Transmission Bellhousing Kit, Manual, OE Style, Aluminium, SB, BB, Chev Engines, Tremec TKO Trans, Kit

RTS
SKU:
RTS-BH012GM-KIT
|
UPC:
9338762160238
$567.00
(No reviews yet)
Weight:
5.00 KGS
Width:
0.45 (cm)
Height:
0.20 (cm)
Depth:
0.45 (cm)
Current Stock:
Adding to cart… The item has been added
Description

RTS’ replacement bellhousings are cast aluminium production style bellhousings built to Ford and GM specifications, ensuring you of a high quality product that’s right for the job. Some applications may require minor modifications for transmission clearance and mounting.

Features:

  • Lightweight cast aluminium design similar to the original equipment bellhousings
  • non-SFI rated option for projects that do not require a steel SFI rated unit
  • Lower cost, Not same as our RTS branded Bellhousing
  • A356-T6 cast aluminium
  • Designed for hydraulic and mechanical fork throwout bearing linkage
  • Bellhousing depth: 6.45 in
  • Clutch fork opening: 2.125 in x 3.3 in
  • Transmission bore diameter: 4.684 in
  • No hardware included
  • Fits SB & BB Chevrolet, will bolt to LS but has No top bolt hole provision
  • Kit includes: Thrust Bearing, Clutch Fork, Fork Pivot, Fork Boot, Inpection Plate / Dust Cover
  • Connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO, and TKX transmissions

Note: Will not suit Holden V8 with GM/Chev bolt pattern due to starter position
