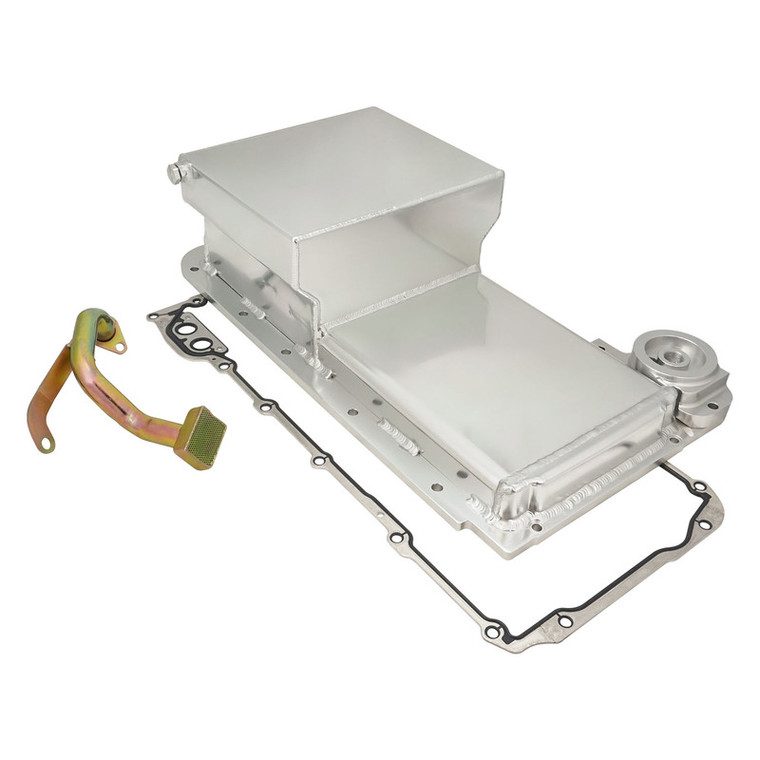

RTS Oil Pan, Aluminium Fabricated Pan, Front Sump, Chev/Holden Commodore LS, 427 Stroker, Remote Mount Filter, Pick Up, Kit
RTS
$565.87
(No reviews yet)
Write a Review
RTS
RTS Oil Pan, Aluminium Fabricated Pan, Front Sump, Chev/Holden Commodore LS, 427 Stroker, Remote Mount Filter, Pick Up, Kit
RTS’ LS fabricated oil pans allow for fitment in a wide variety of Holden/Chevrolet vehicles where a bulky cast aluminium pan cannot be used due to clearance issues. Fabricated from either 3 mm steel or 9.5 mm thick aluminium, these low profile pans have anti-slosh baffles and four trap doors to correctly baffle oil while maintaining a 6.5 L capacity. A wide variety of options are available which include remote oil filter kits or in-built AN10 fittings and come with a matte black coating. Designed for Gen III and IV LS wet sump applications.
Note: The aluminium front sump versions can be made to suit VB-VT Holden Commodores with LS engines.
Features:
- Sump is 6” deep for increased ground clearance
- 1.75" deep at shallow side
- 8.75" Long sump
- 10.25" wide at sump kickouts
- 21” length overall
- Pan depth at front half of pan is 1.75" for increased K-member/steering clearance
- Fits stroker kits up to 4.125” stroke with OE connecting rod design
- Anti-slosh baffles with four trap doors ensures oil is always around the pickup during acceleration and braking
- Pick-up tubes are included with all pans
